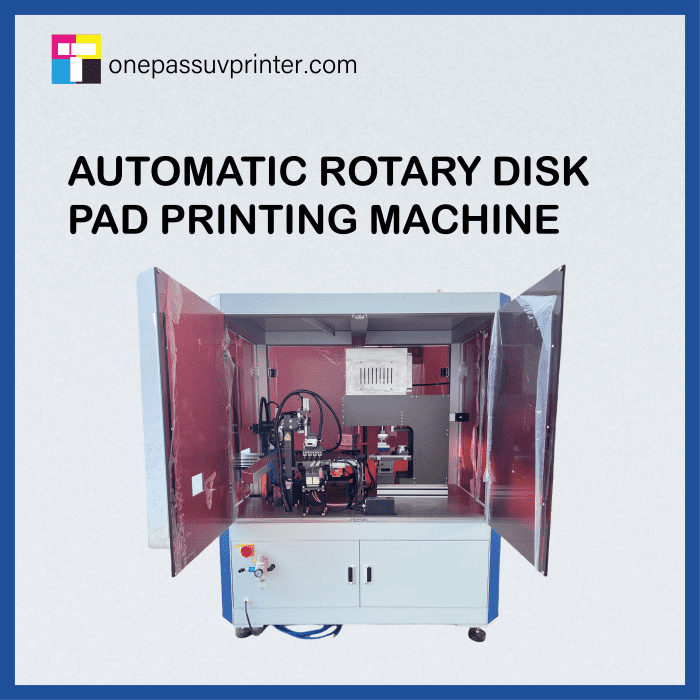

AUTOMATIC ROTARY DISK PAD PRINTING MACHINE

Description

Standard steel plate size: 100*150mm (can be customized)

Maximum printing area: 70*120mm (can be customized)

Adhesive head up and down stroke: 75mm

Adhesive head front and back stroke: 160mm

Printing color: 2

Maximum height of the workpiece: 140mm

Speed of the color: 1500pcs/h

Rotary transfer printing machine, to achieve multi-color color overlay printing in a single production cycle, the rotary disk rotates a frame to print one Products, equipment using high-precision CNC processing, fast speed, high precision, good stability, this equipment is our customized equipment, in the standard two-color turntable machine, based on the addition of robotic automatic discharging function, eliminating the need for manual pick-up steps, the addition of a plasma surface treatment device, to solve the PP material products need to be wiped before the printing of the PP water program, this equipment can also be in the back of the robotic This equipment can also add assembly line drying device behind the manipulator, the printed products are directly placed on the assembly line drying equipment after the manipulator removes them.
